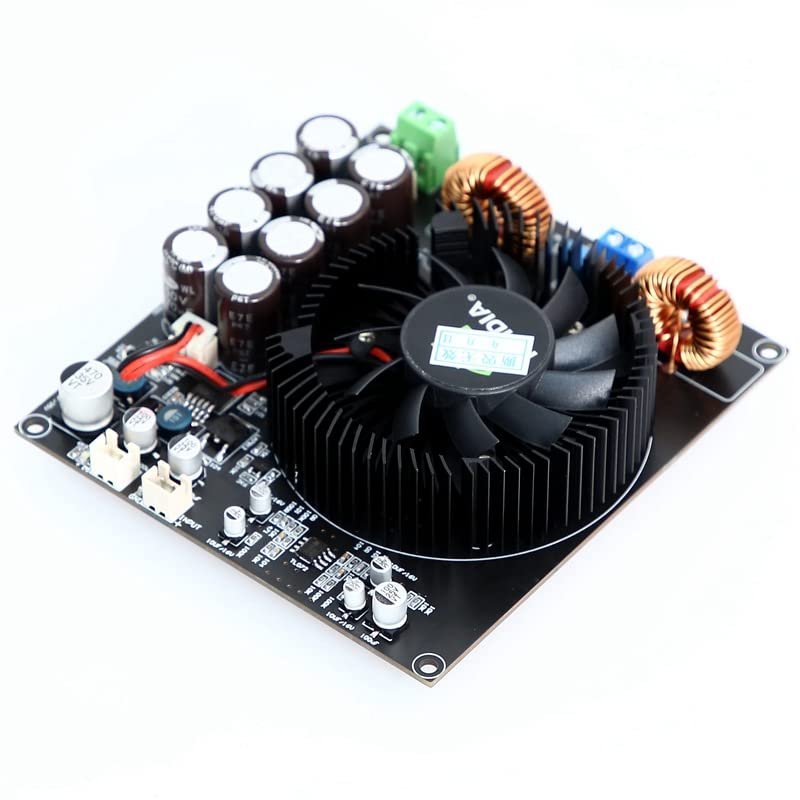

Jolooyo TPA3255 Class D Digital Monophonic Power Amplifier Board 600W

Description

• All the parts and components of this product are original authentic, simple, pure quality; The use of high quality original parts, not only safety and quality is guaranteed, long service life, more important is to make the actual performance can reach the design goal of a strong guarantee.
• The original TPA3255DDVR is used main filter electrolytic capacitor adopts 470UF/50V*8, to ensure strong and continuous power support.
• Resistor uses high precision patch resistor to ensure good signal-to-noise ratio of the whole machine.
• Using acoustic special magnetic ring inductance, to ensure the sound crisp and strong.
• PCB adopts 1.6mm thick double-sided plate, 2.0 ANSI copper thickness, the whole process of tin spraying, to ensure the good performance of large and small current through.

Product Description:
TPA3255 is a high performance Class D power amplifier that delivers Class D efficiency and truly high-end sound quality. The device features an advanced integrated feedback design and a proprietary high-speed gate driver error correction feature (PurePath Ultra HD). This technology enables devices to maintain ultra-low distortion across the entire audio band while presenting perfect sound quality. Operating in AD mode, the device can drive up to one 600W/2R load at 10% THD and features a 2 VRMS analog input interface for seamless connection with high-performance Dacs such as TI's PCM5242. In addition to excellent audio performance, the TPA3255 offers both high power efficiency and ultra-low power level idle loss (under 2.5W). This can be achieved with an 85mR MOSFET and an optimized grid driver scheme. Compared with the traditional discrete implementation scheme, this scheme can significantly reduce idle loss.
Basic performance parameters:
Working mode: D class
Static current: 300mA
Work efficiency:90%
Output power:
450W/3, distortion 10% peak 600W
Frequency response: 20Hz to 20KHz
Dynamic range: > 100 dB
Signal to noise ratio: (SNR) > 111dB
Operating voltage: DC24-48V switching power supply (DC)
PCB size: 110*102MM

Package1pc TPA3255 Class D Digital Monophonic Power Amplifier Board 600W
