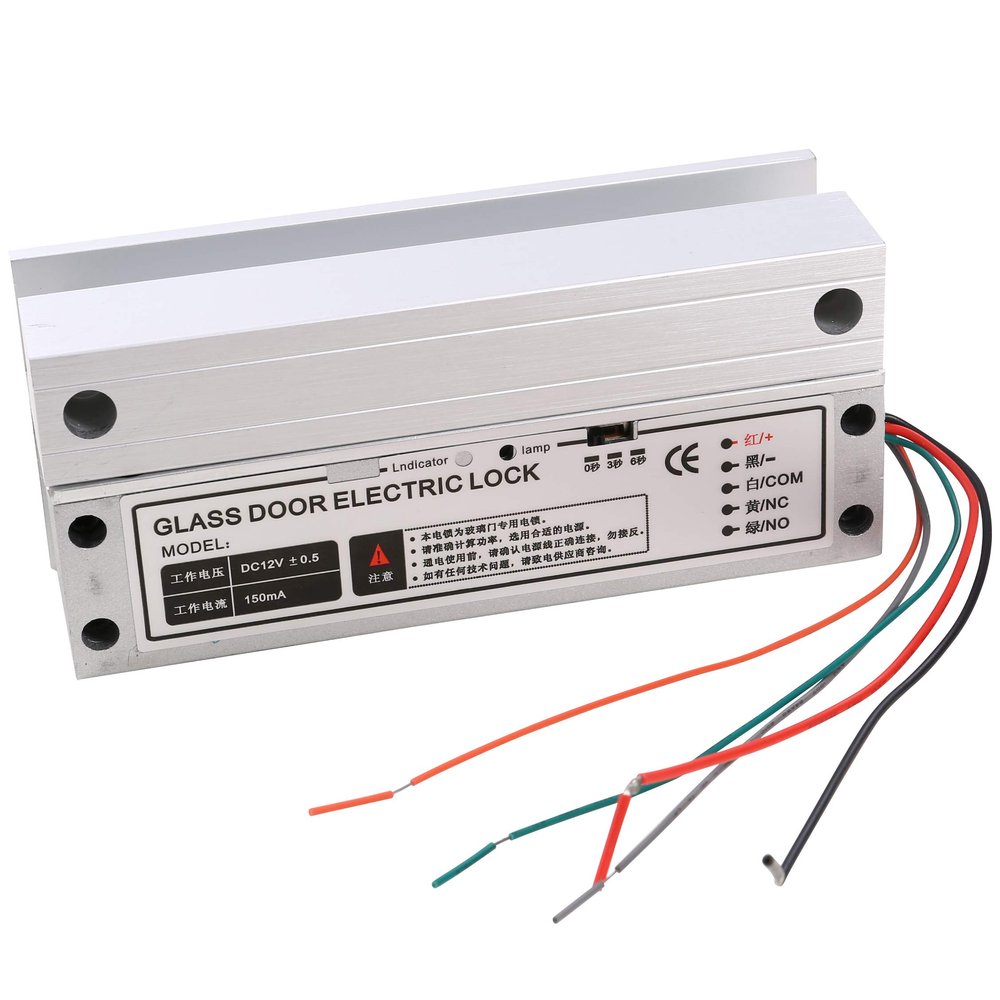

UHPPOTE Electric Bolt Lock for Frameless Glass Door Left-Open with Feedback Signal

Description

• Low Temperature, safe & Durable
• Low Power, Environmental Protection
• Superior Strength Aluminium Alloy, Solid Stainless Steel Bolt
• Door statue signal output contact NC/COM
• Auto-relock if no Action within 5 secs

Advantage:
Low Temperature, safe & Durable
Low Power, Environmental Protection
Special photoelectricity control, three steps current application
Long Life with 500000 cycles
MOV Provides Reverse Current Protection
Superior Strength Aluminium Alloy, Solid Stainless Steel Bolt
Autolock Time Delay: 0/3/6/9 sec
Door statue signal output contact NC/COM
Double protection for loading current
Auto-relock if no Action within 5 secs
Certificate: CE&MA
Photoelectricity Control,Low Temperature
Specifications:
Fail safe, NC mode (Unlocked when power is removed)
Suitable For 10-12mm Fully Frameless Glass Door
Face Plate: 148Lx43WX39H(mm) / 5.83Lx1.69Wx1.54H(in)
Bolt: 16mm/0.63in DIA,stainless steel 13mm/0.51in throw
Voltage: DC12V
Start Current: 960mA
Standby Current: 130mA
Solid Bolt: Polishing housing, 1000Kg/2204lb Holding Force
Autolock Time Delay: 0/3/6/9 sec
Signal Output: Door status Output,NC/COM
Surface Temp: Low Temperature
Induction Distance: 8mm / 0.31in
Operating temp: -10~+55(14~131)
Operating Humidity: 0~90%(non-condensing)
Special Designed: Tested to 500000 operations
Face place material: Stainless Steel
Weight: 0.9kg / 1.98lb
Package include:
1 x Electric Lock
1 x Screw Kit
1 x Manual
