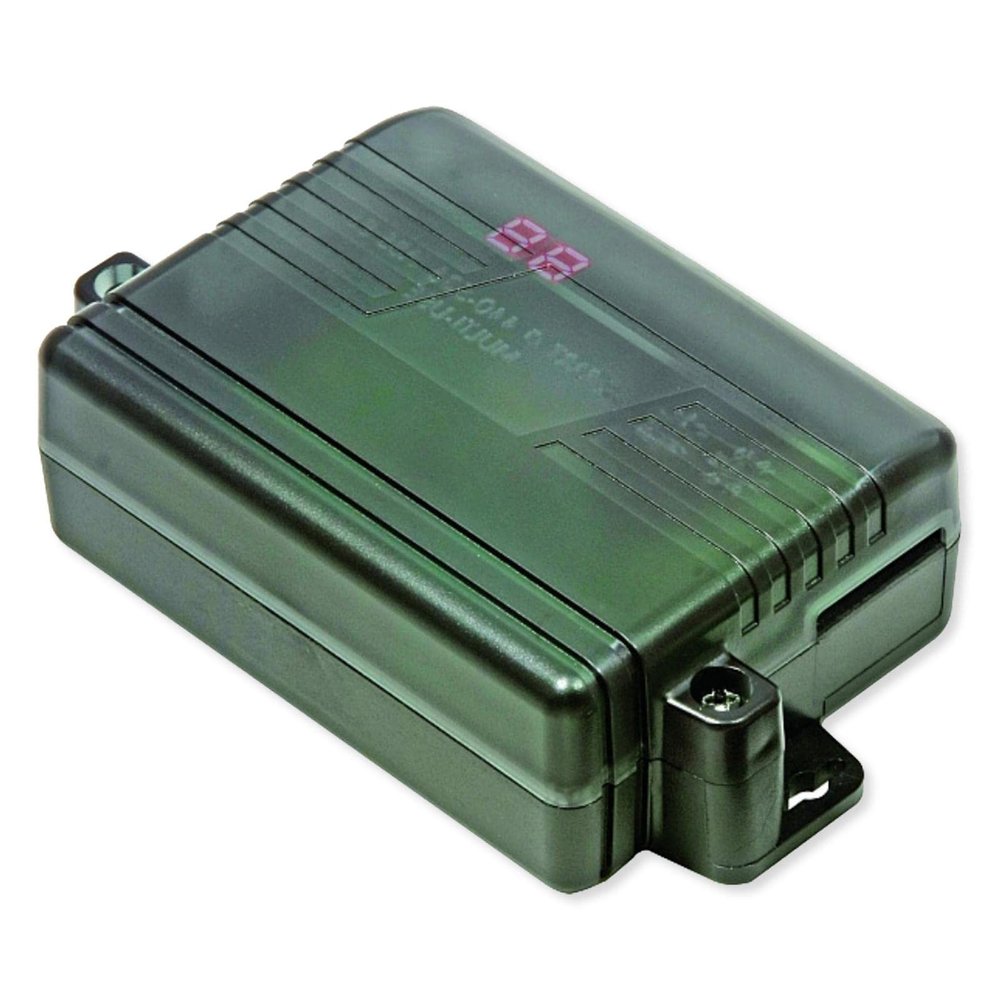

Seco-Larm HL-951R2-SQ Enforcer RF Receiver, 917MHz, 2 Channels

Description

• Up to 99 button codes per channel and 5 individually programmable output modes
• Compatible with all Enforcer 917 MHz RF transmitters
• Operates up to 1,800 feet (depending on installation and operating environment)
• Armor-piercing technology for improved penetration
• Wide voltage range: 10~24 VAC or 9~48 VDC; PCB antenna makes installation easy

Create a network of various 917 MHz wireless devices with the Seco-Larm Enforcer RF Receiver. The Seco-Larm Enforcer RF Receiver is part of the HL series and is compatible with all 917MHz Seco-Larm transmitters. It features 5 output modes per channel and each channel can be programmed independently. This RF receiver works with the RF transmitter to allow you to wirelessly control various applications/devices such as smart home devices, garage doors, gates, house lights, alarm panels, or other devices connected to a Seco-Larm receiver. For example, each member of your family can carry a personal transmitter that operates your garage door opener, arms/disarms your security system, or controls your outdoor lighting with the push of a button. The receiver is available in 1-channel or 2-channel options. Up to 99 button codes per channel and 5 individually programmable output modes Compatible with all Enforcer 917 MHz RF transmitters Operates up to 1,800 feet (depending on installation and operating environment) Armor-piercing technology for improved penetration Wide voltage range: 10~24 VAC or 9~48 VDC PCB antenna makes installation easy
Seco-Larm Enforcer RF Transmitters and Receivers feature digital modulation, which helps reduce interference and allows for improved signal penetration in areas with heavy obstructions. The transmitters offer a long battery life of up to 10 years while the receivers have a wide voltage range (low current 10~24 VAC / 9~48 VDC). Plus, they also feature a significantly longer range of up to 1,800 feet (line of sight).

Contents
RF Receiver Manual

Technical Details
Manufacturer Part #: HL-951R2-SQ UPC: 676544021216 Type: 2 Channels RF Frequency: 917MHz Memory Capacity: 99 transmitter button codes per channel Operating Voltage: 10~24 VAC, 9~48 VDC Operating Current: Standby: 8mA@12VDC / 5mA@24VDC / 3mA@48VDC (typical) Active: 100mA@12VDC / 50mA@24VDC / 25mA@48VDC per channel Relay Output: Type: Independent, sequence, access control Modes: 1~99 sec momentary (default, 1s), 1~99 min momentary, toggle, latch, follow (validity) Relay Contacts: Form C 10A@14VDC Operating Range: Up to 1,800 feet (depending on installation and operating environment Digital Display: 2-Digit, 7-segment LED Connectors: Screw terminals, +, -, with NO/NC/COM per relay Other Features: Programming by the switch, no need to cut jumpers LED Indicates RF reception and programming functions RF Signal strength/site survey test mode to find the optimal installation location Operating Temperature: -40~167 F (-40~75 C) Dimensions: 3-15/16 x 2-1/2 x1-3/1 inches (100 x 63 x 30 mm) Credentials: FCC, CE Warranty: 1 Year
