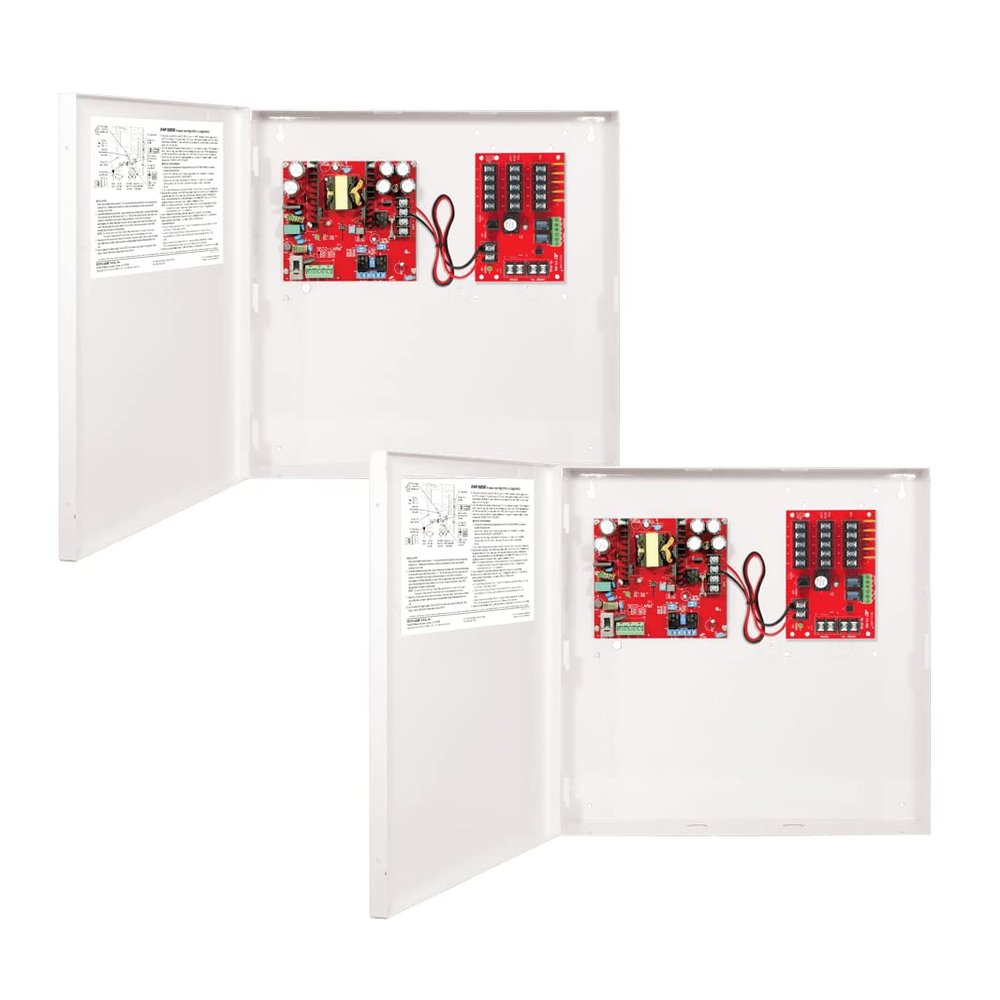

Seco-Larm EAP-5D5Q Pack of 2 Access Control Power Supplies; 12 or 24 VDC Output Voltage; 5 Outputs; 5A@12VDC (2.5A@24VDC); Heavy-Duty Steel Case

Description

• AC Power failure supervision relay
• DC Power failure supervision relay
• Battery failure / low battery supervision relay
• Heavy-duty Steel Case
• Auxiliary output relay

Seco-Larm EAP-5D5Q Pack of 2 Access Control Power Supplies; 12 or 24 VDC Output Voltage; 5 Outputs; 5A@12VDC (2.5A@24VDC); Heavy-duty Steel Case

The SECO-LARM EAP-5D1Q and EAP-5D5Q power supplies are specifically designed for an access control systems electronic locks and accessories; these power supplies centralize the power sources of access control equipment; they include two supervision relays that can be used to integrate with other systems such as an alarm control panel; robust fault response and indication also includes gradual shutdown on output overload as well as immediate shutdown on output short, signaled by flashing red LED and with auto-recovery once output short or overload is removed

Key Features:
-AC Power failure supervision relay
-DC Power failure supervision relay
-Battery failure / low battery supervision relay
-Heavy-duty Steel Case
-Auxiliary output relay

Specifications:
-Input Voltage: 110~240VAC
-Output Voltage: 12 or 24VDC selectable via DIP switch
-Adjustable Output Voltage Range: 11~15 @ 12VDC setting, via VR switch, 23~28 @ 24VDC setting, via VR switch
-Number of Outputs: 5
-Total Supply Current: 5A@12VDC / 2.5A@24VDC
-Input Fuse Rating: 3.15A ( glass fuse, AC)
-LED Status Indicator: AC input ( Green ), DC Output ( Red )
-End-of-Line Resistor (EOL): Selectable ON ( 2.2K) or OFF via DIP switch
-AC-Fail Relay Delay Timer: Selectable @ 5sec, 5min or 5hr via DIP switch
-Supervision Relays: Contact Rating: 3A@24VDC Dry Relay Output
-Dimensions: 14-13/16 x 14-5/16 x 4-1/8 inches
-Shipping Weight: 12 pounds
