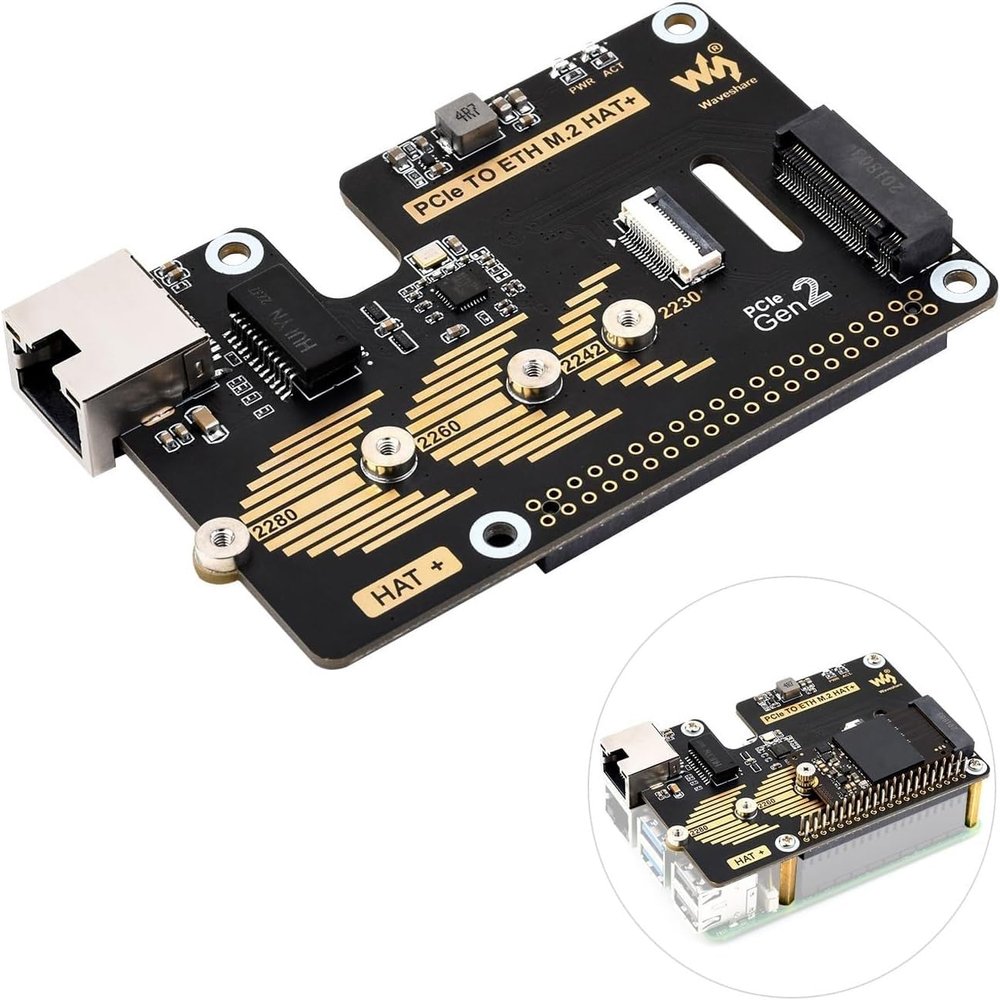

PCIe to ETH and M.2 Adapter for Raspberry Pi 5, Compatible with 2280/2260 / 2242/2230 Size NVMe Protocol M.2 SSD, 5Gbps Data Rate, High-Speed Reading/Writing (PCIe to ETH M.2 HAT+)

Description

• PCIe to Gigabit Ethernet and M.2 adapter board designed for Raspberry Pi 5, expands 2230 / 2242 / 2260 /2280 size M.2 hard disk and Gigabit network port, supports Gen2 mode only, supports booting PI5 from SSD.
• Supports NVMe protocol M.2 interface hard disk protocol, high-speed reading and writing, high work efficiency.
• Supports only PCI-E1 Gen2 mode, only supports PI5B.
• Compatible with 2230 / 2242 / 2260 / 2280 size M.2 hard disk.
• Onboard working indicator light, PWR is always on when powered on, and read and write ACT flashes, and the working status is clear at a glance.
• Network port working indicator light, Gigabit green light flashes, 100M yellow light flashes.
• NOTE: Raspberry Pi does not support NVME boot by default, and the boot needs to be modified.

Product Introduction
PCIe to Gigabit Ethernet and M.2 adapter board designed for Raspberry Pi 5, expands 2230 / 2242 / 2260 /2280 size M.2 hard disk and Gigabit network port, supports Gen2 mode only, supports booting PI5 from SSD.

Features
Supports NVMe protocol M.2 interface hard disk protocol, high-speed reading and writing, high working efficiency.
Supports PCI-E1 Gen2 mode only.
Supports PI5B only.
Compatible with 2230 / 2242 / 2260 / 2280 size M.2 hard disk.
Onboard working indicator light, PWR is long when powered on, and read and write ACT flashes, and the working status is clear at a glance.
Network port working indicator light, Gigabit green light flashes, 100M yellow light flashes.

Note: Raspberry Pi does not support NVME boot by default, and needs to modify the boot.

Package Content
1. PCIe TO ETH M.2 HAT+ x1
2. 2*20 Pin header x1
3. 16P-Cable-40mm x1
4. Screws pack x1
5. SSD mounting screw x1
