Nextion 2.4" TFT 320 x 240 resistive Touch Screen UART HMI SmartLCD Module Display for Arduino TFT English

Description

• Nextion 2.4" TFT 320 x 240 resistive touch screen UART HMI SmartLCD Module Display for Arduino TFT English

Overview

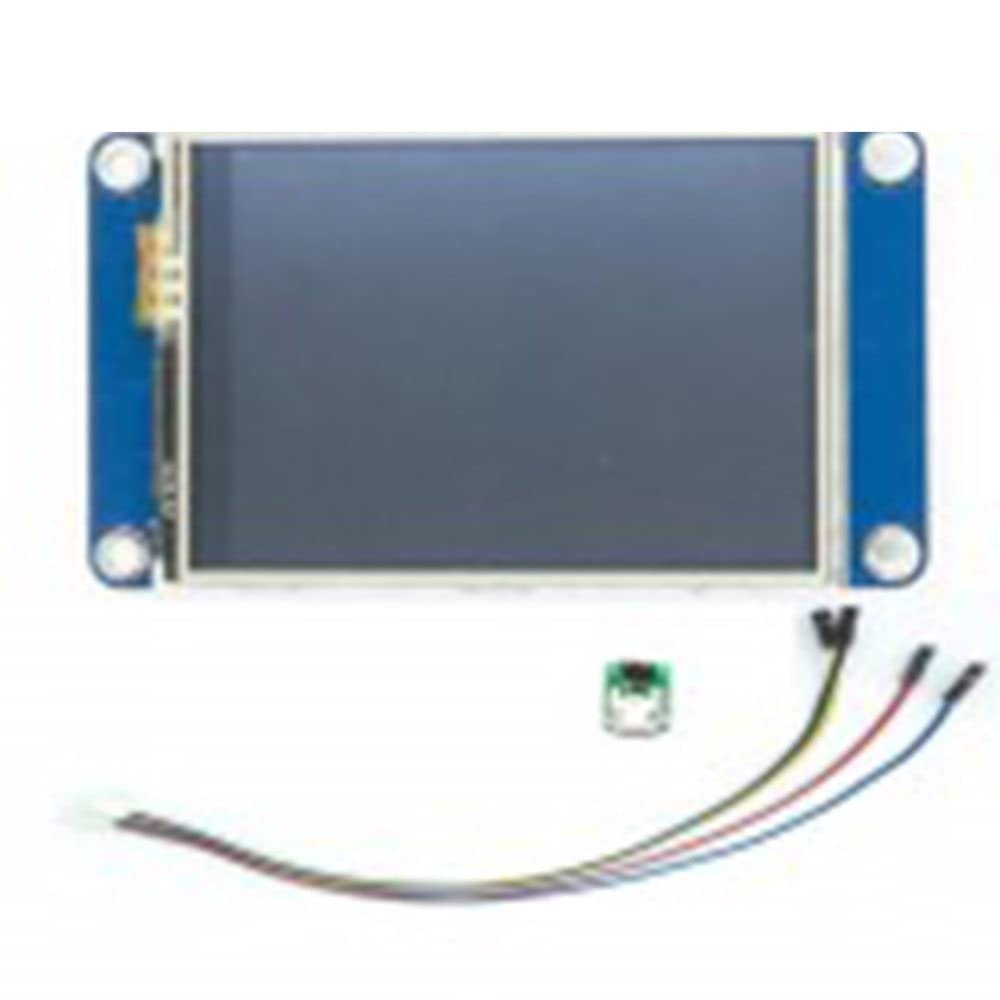

Package include: a Nextion 2.4'' display, a wire, a power supply test board

Notes:

there's a small power supply test board and a wire for you to test if the electricity supply is enough or not. Please see below image how to use it.
Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. It is the best solution to replace the traditional LCD and LED Nixie tube.
Nextion includes hardware part (a series of TFT boards) and software part (the
Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets you avoid the hassle of wiring. We notice that most engineers spend much time in application development but get unsatisfactory results. In this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich your interface design. And the drag-and-drop function ensures that you spend less time in programming, which will reduce 99% of your development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
It's easy to adapt Nextion family HMI to existing projects, you just need to provide it a UART.
NX2432T024 is a powerful 2.4'' HMI, which is member of Nextion family. Features include: a 2.4" TFT 320 x 240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors.

Features
320 x 240 Resolution
Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2
RGB 65K true to life colours
TFT Screen with integrated 4-wire Resistive Touch Panel
Easy 4 pin interface to any TTL Serial Host
4M Flash memory for User Application Code and Data
On board micro-SD card for firmware upgrade
Visual Area:36.72mm(L)48.96mm(W)
Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
5V90mA power conusmption
