Microcontroller Board for Pico RP2040, Dual Core Cortex M0+Processor Flexible Microcontroller Module with SD2SP2 SDLoad SDL Adapter (White)

Description

• Rich Hardware Interface: For RasPi Pico has 26 x multi function GPIO pins, 2 x SPI, 2 x I2C, 2 x UART, 3 x 12 bit ADC, 16 x controllable PWM channels, on chip clock and timer, temperature sensor, accelerated on chip floating point library, 8 x programmable I/O () state machine, custom peripheral support.
• Support USB TYPE C Interface: Castellated module allows direct soldering to carrier board, one touch reset function, quick and easy, low power sleep and hibernate modes, drag and drop programming using mass storage via USB.
• Easy to Use: This for SD2SP2 SDLoad SDL adapter allows a Micro storage card to be inserted into serial port 2. Start your for NGC game or backup from the second serial port for lag full motion video and improved read in of the serial port adapter, for code improvements allow for better read time as the serial port on the game console, and game loading faster.
• High Performance: For Pico Boot is a microcontroller board based on the for RasPi RP2040 microcontroller chip. It is designed as a one of a kind, high performance microcontroller board with a flexible digital interface. For Pico Boot features two Cortex M0+ cores up to 133 MHz; 256 kb of ; 30 GPIO pins; and a wide range of interface options.
• Multiple Software Support: For Pico has rich and complete software support, it comes with full compatibility with the official for RasPi C/C++ SDK, Micro python SDK. 16MB of on board QSPI flash memory for code and data storage. Maximum operating current is up to 500 mA.

Specification:
Item Type: for RasPi Microcontroller Board
Material: PCBA
Size: Approx. 5.1 x 2.1 x 0.4cm/2.0 x 0.8 x 0.2in
Interface: USB C
Processor: Dual Core Cortex M0+ Processor
Chip: for RasPi RP2040 Microcontroller Chip
On Board Flash Memory: 16MB
Sram: 264K
Maximum Operating Current: 500mA
for SD2SP2: Micro Storage Card
Features
Official for RasPi Pico Module
Easy to Install, Only 5 Wires Are Needed for Soldering
Detailed Soldering Tutorial and Video Instructions
Programming Via USB Cable, No Drivers or Programs Required
Automatically Launches Any DOL Application of Your Choice (switzerland)
Uses the Injection Method Which is Superior to Mods Like for XenoGC
Complete Replacement for the for XENO+ Boot Disk Method of Operation
26 x Multifunction GPIO Pins
2 x SPI, 2 x I2C, 2 x UART, 3 x 12 Bit ADC, 16 x Controllable PWM Channels

How to Use:
Remove the product and use it

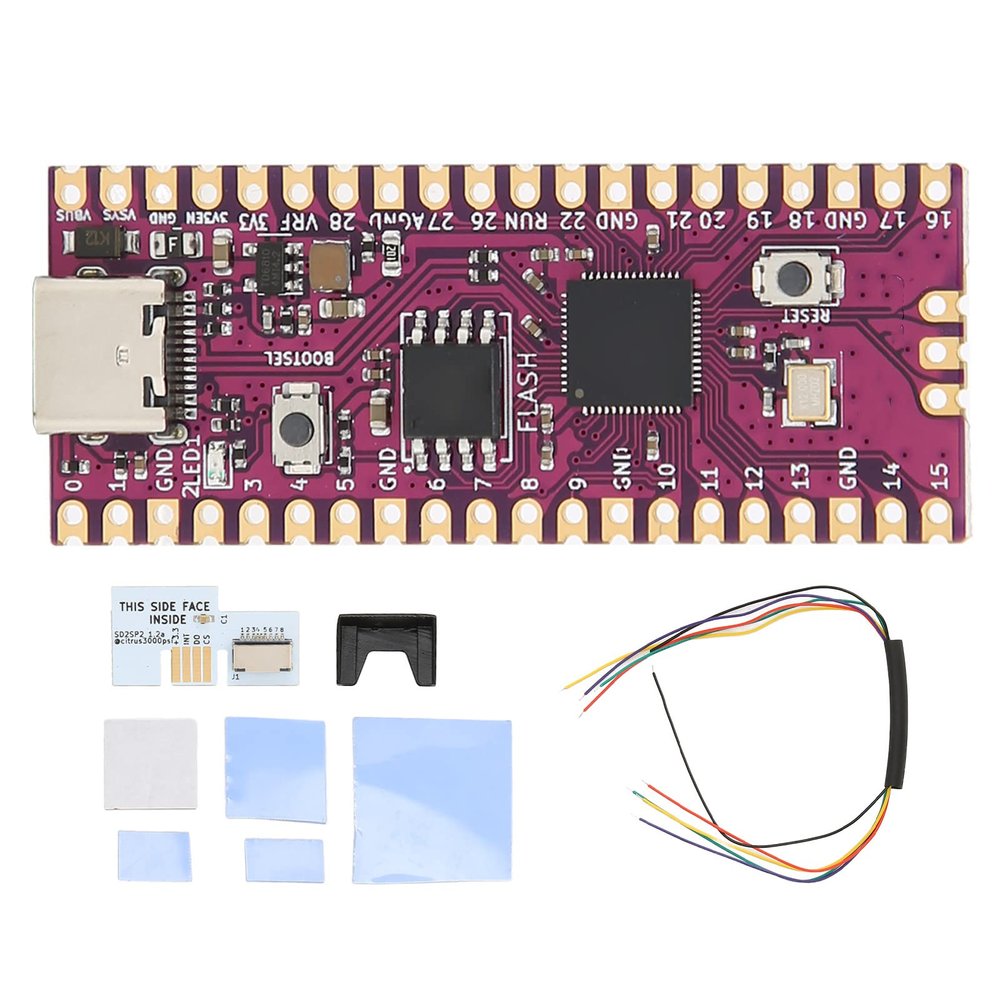

Package List:
1 x for Picoboot Development Board Copied Program
5 x Electronic Wire
1 x Heat Shrink Tube
1 x Plastic Bracket
1 x Double Sided Adhesive
4 x Silicone Film
1 x for SD2SP2

Note:
Please allow some errors due to manual measurement.
