JESSINIE

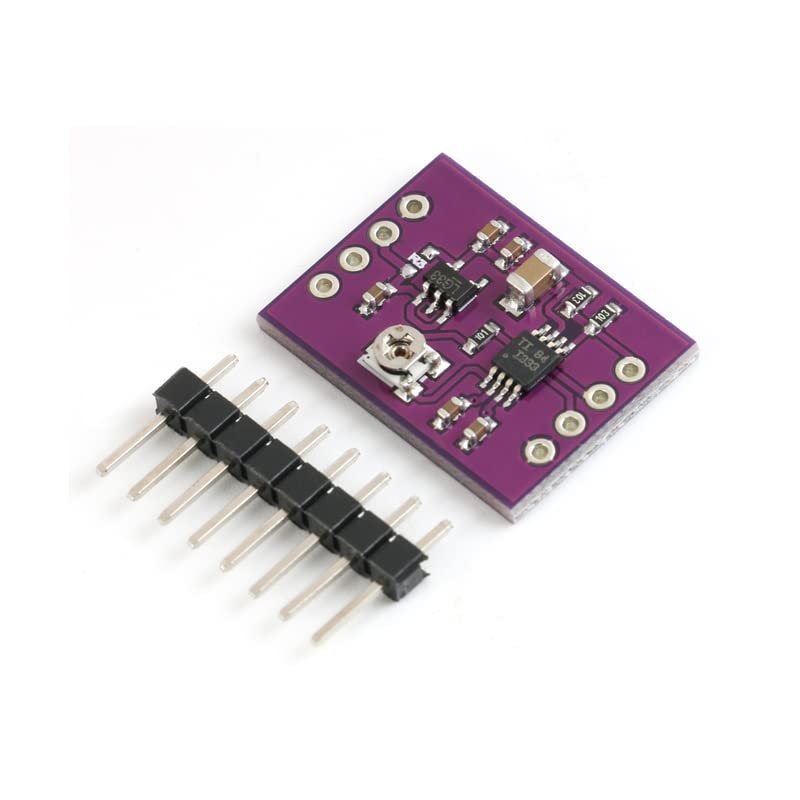

JESSINIE INA333 Amplifier Module 3 Operational Amplifier INA333 Low Power Precision Instrumentation Amplifier Module Board
SG$71.18
SG$118.63
-
Order within to get between -
Tracked Shipping on All Orders
-
14-Day Returns
- Secure Payments
-
24/7 Customer Support
Description
- The INA333 device is a low-power precision instrumentation amplifier with excellent accuracy. The device adopts a universal three-operational amplifier design, and has a small size and low power consumption characteristics, which is very suitable for various portable applications.
- The gain can be set in the range of 1 to 1000 through a single external resistor. INA333 is designed to use an industry standard gain formula: G = 1 (100k/RG).
- INA333 device has ultra-low offset voltage (25 V, G 100), excellent offset voltage drift (0.1 V/C, G 100), and high common mode rejection ratio (100dB, G 10).
- Low offset voltage: 25 V (maximum), G 100, Low drift: 0.1 V//C, G 100, Low noise: 50nV/Hz, G 100, High common mode rejection ratio (CMRR):100dB (minimum), G 10, Power range: 1.8V to 5.5V
- Suitable for Bridge amplifier, Electrocardiogram (ECG) amplifier, Pressure sensor, Medical instrument, Portable instrument, Weighing instrument, Thermocouple amplifier , Resistance temperature detector (RTD) sensor amplifier, Data acquisition
