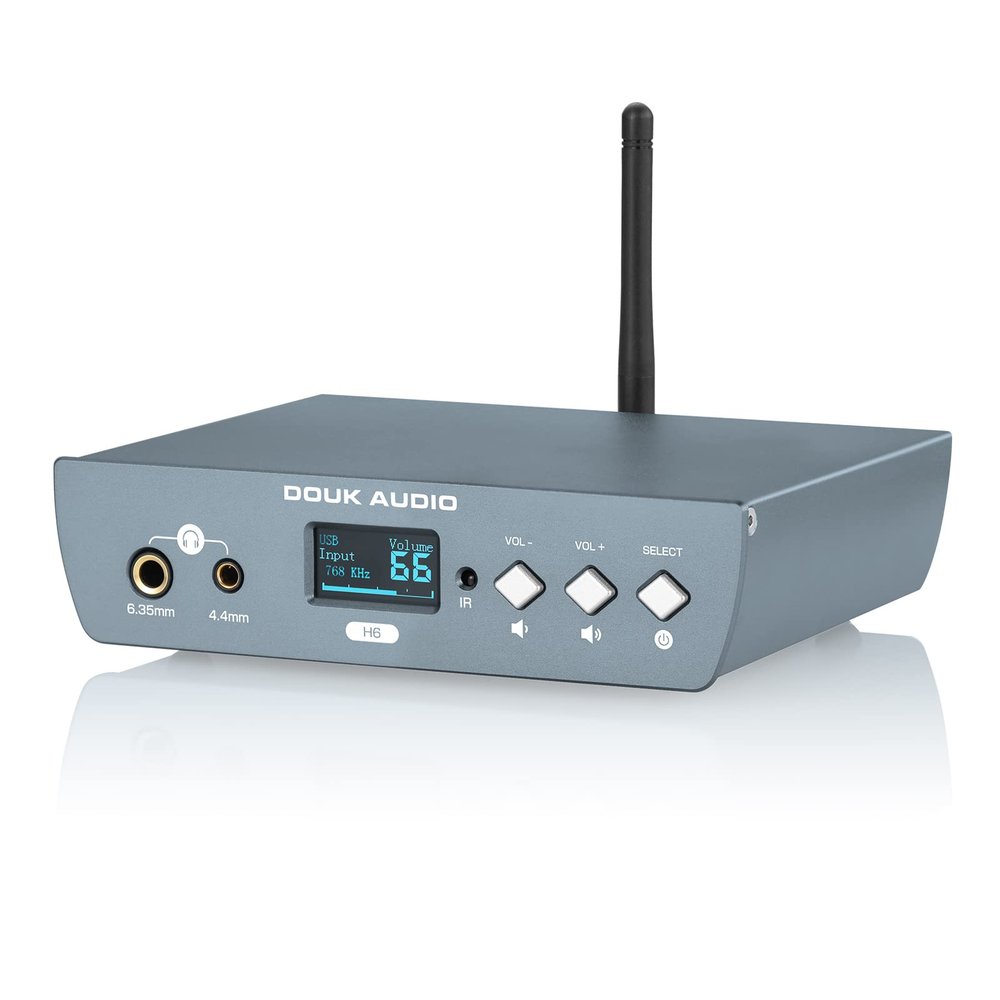

HiFi S/PDIF USB DAC Preamp Bluetooth Receiver D/A Audio Converter Headphone Amp

Description

• With multiple audio inputs and outputs: support Bluetooth / PC-USB / coaxial / optical inputs, compatible with most digital audio sources such as phone, tablet, computer, TV, digital player etc. With stereo RCA / XLR and 6.35mm / 4.4mm headphone jack outputs, greatly improve the sound quality for amplifier / active speaker / headphones, HiFi music also can be enjoyed at home.
• High-end materials and unique structure are adopted to ensure better performance: CSR8675 Bluetooth chip, supports ACC/SBC/APTX/APTX-HD/LDAC, achieves further distance and 24bit/96Khz lossless signal transmission without delay. XMOS HU400 USB chip with special driver, support 32Bit/768Khz transmission and DSD512 playback. ESS9038 independent DAC chip, with richer audio details, larger dynamic range, lower distortion and higher resolution. Classic headphone amp architecture (2*TPA6120A2), provide larger output power(up to 2W) enough to drive 16-600 headphones.
• Multifunctional with excellent design: not only a Bluetooth receiver, an audio decoder, a headphone amp, but also a preamp to satisfy different requirements; with large OLED display to show all working status clearly, and supports remote control to achieve all settings easily.
• Attractive looking and complete accesories: custmoized grey aluminum alloy case, CNC machined with laser engraving, looks solid and luxury. Comes with 1USB cable, 1Optical cable, 16.35mm to 3.5mm adapter, no need for extra purcahse, very suitable for the audiophiles who pursue HiFi sound in limited space.

Parameters
Chip architecture: CSR8675 (Bluetooth chip) + XMOS HU400 (USB chip) +ESS9038 (DAC chip)
Audio input: Bluetooth / PC-USB / Coaxial / Optical
Audio output: Stereo RCA / XLR / 6.35mm & 4.4mm headphone jack
Bluetooth version: 5.0 (support APTX /APTX-HD / LDAC)
Sampling rate supported:
PC-USB: PCM 768KHz / 32bit DSD512
Coaxial / Optical: 192KHz / 24bit
PC-USB operation system supported: W7/W8/W10/MAC/Linux
Frequency response: 10Hz-40KHz (0.2dB)
THD: <0.0003%
S/N ratio: 118dB
Output level: 2.4V (RCA) / 4.8V (XLR)
Matched headphone impedance: 16-600
Headphone output power: 2W (4.4mm) / 520mW (6.35mm)
Working voltage: DC 12V
Dimensions(W*D*H): 167*128*42mm / 6.57*4.96*1.65in
Package dimensions(W*D*H): 310*240*70mm / 12.20*9.45*2.76in
Net weight: 620g / 1.37lb
Package weight: 1.1kg / 2.43lb
