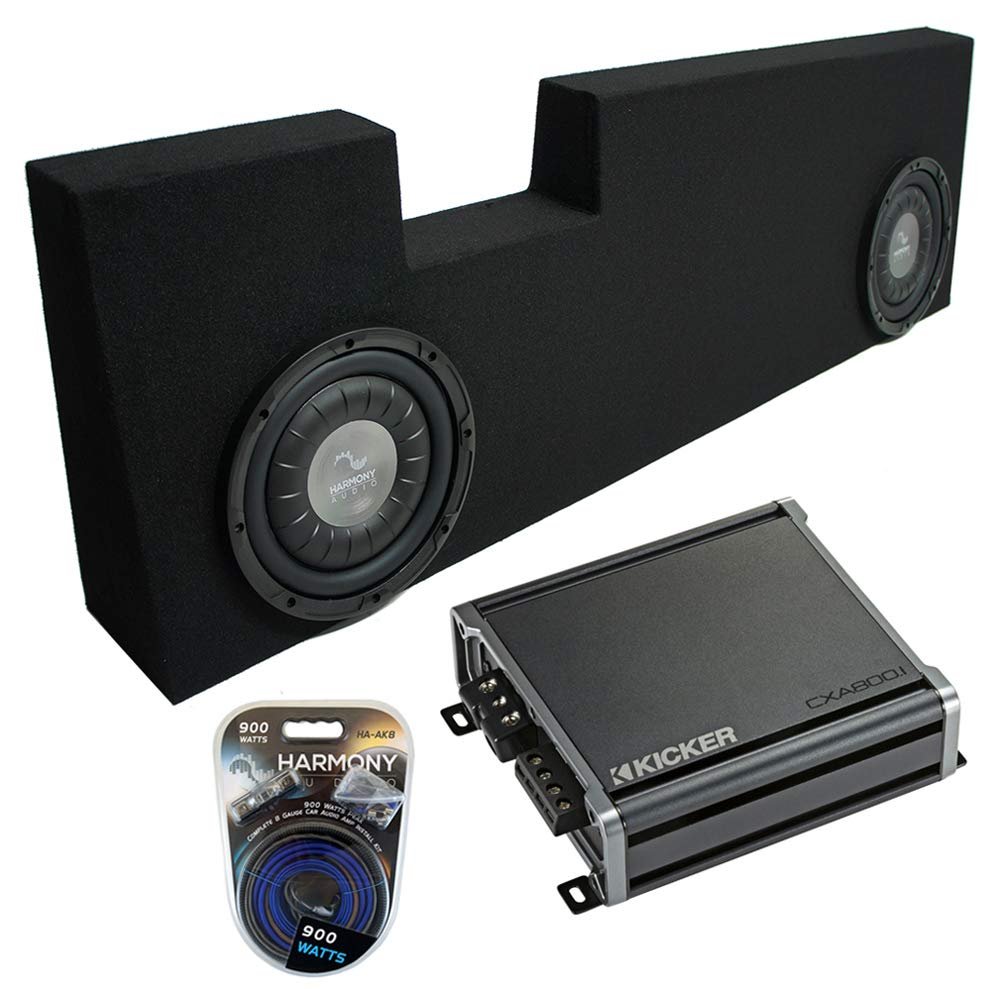

Harmony Audio F124 Compatible with Compatible with 2001-2014 Ford F250 F350 Super Crew Truck Dual 12 Sub Box & CXA800.1

Description

• Air Space: 0.65 Cubic Feet per Sub
• Sealed Enclosure
• 12" 4 Ohms Subwoofer
• Peak: 800 watts/RMS: 400 watts
• Class D Mono Amplifier

Custom Dual 12" Subwoofer Enclosure Sub Box: Air Space: 0.65 Cubic Feet per Sub Mounting Depth: 4-1/4" Sealed Enclosure Dimensions: Width 55" x Height 16-1/4" x Top Depth 3" x Bottom Depth 6" Constructed with High Quality MDF High Quality Spring Loaded Terminal Cups (Bare Wire 'up to 10GA') High Quality Black Carpet
Harmony Audio HA-F124 Car Stereo Flatline Series 12" Sub 800W Single 4 Ohm Subwoofer: Peak: 800 watts/RMS: 400 watts Sensitivity: 87.3dB Frequency Response: 25Hz-1.2Hz Mounting Depth: 4 1/2" Mounting Cutout Diameter: 11 1/8" Sealed Box Volume (Cubic Feet): 0.55-3 Vented Box Volume (Cubic Feet): 1.68-2.25 Single 4 Ohm Polypropylene Injection Molded Cone Aluminum Cone Cap Butyl Rubber Surround Tinsel Leads Woven into Spider 2" Copper Voice Coil Steel Basket Ferrite Magnet Kapton Former Material
46CXA8001 Car Audio Class D Amp Mono 1600W Peak Sub Amplifier CXA800.1: 1 Ohm Stable Three-second turn-on/off delay Variable 12dB crossovers EQ 6dB variable bass boost 24dB subsonic filter FIT+ (Fail-safe Integration Technology-PLUS) Accepts up to 40-volt input signal 600 Watts x 1 @ 2 Ohm RMS/1200 Watts x 1 @ 2 Ohm PEAK 800 Watts x 1 @ 1 Ohm RMS/1600 Watts x 1 @ 1 Ohm PEAK Frequency Response: 25Hz - 200Hz Signal to Noise Ratio: 95dB High level 250mV-10V Low level 125mV-5V Active Crossover: 12dB/octave, variable 50-200Hz, low pass only Subsonic Filter: 24dB/octave high-pass fixed @ 25Hz EQ Boost: Variable to +12dB, centered @ 40Hz
