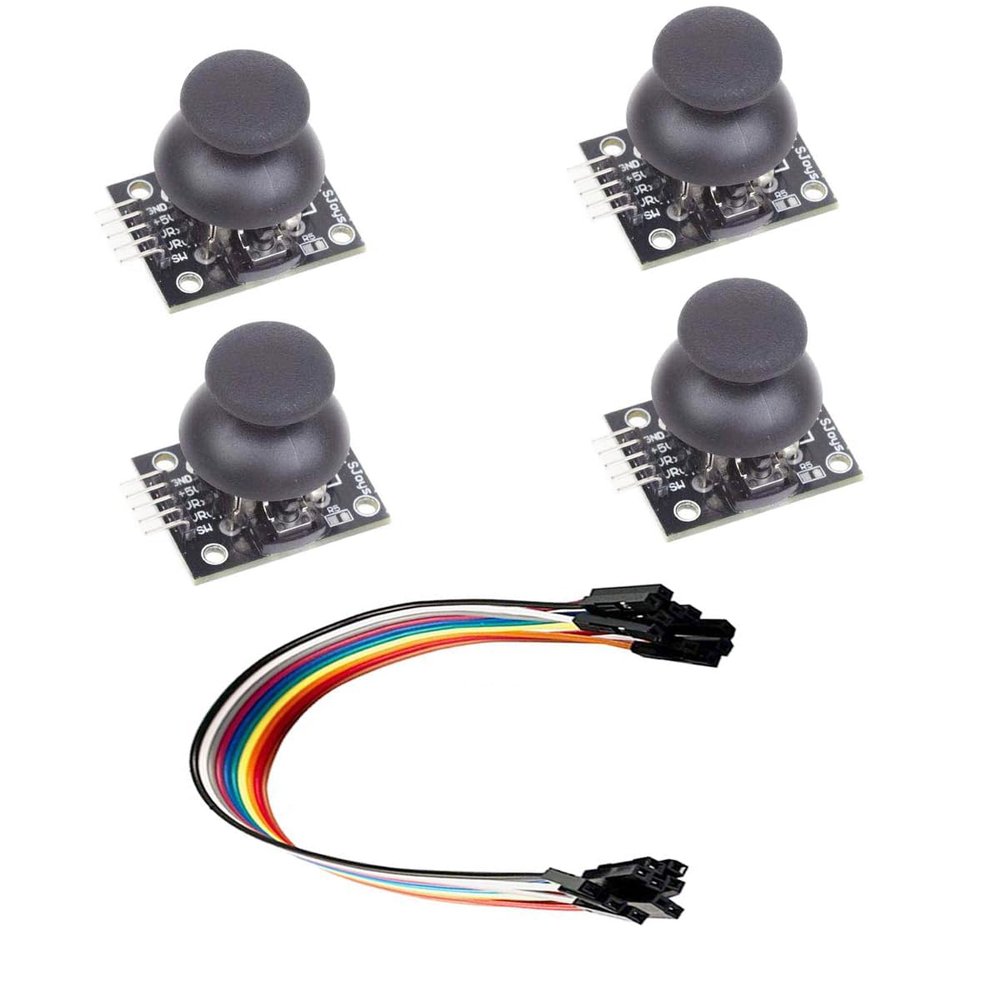

Ferwooh Game Joystick Sensor Dual Axis Game Controller Sensor Joystick Breakout Module with 10P Female Cable(Pack of 4PCS)

Description

• Input voltage range: DC 3.3V - 5V; This kit is very suitable for your PCB project, pc motherboard.
• DO port for digital output, AO port for analog output; Bi-directional 10 k resistor, the resistance changes with the rocker in a different direction.
• In order to allow customers to more easily with expansion board and other standard interface, the design of the X, Y, Z axis of the circuit leads alone, the user can use 3-pin special line really plugged into the expansion board for Use.
• Output signal: module ad hoc two-way analog output and one digital output interface, the output value corresponding to (X, Y) biaxial offset, the type is analog; the button indicates whether the user presses the Z axis, Its type is digital switch.
• Cross rocker is a bi-directional 10K resistor, with the rocker in different directions, the tap resistance changes. The module uses 5V power supply, the original state of X, Y read-out voltage of 2.5V or so, with the direction of the arrow down, read the voltage value increases with up to 5V; the arrow is pressed in the opposite direction, read the voltage value decreases , The minimum is 0V.

Product performance:
1. Input voltage range: DC 3.3V - 5V
2. Output signal: module ad hoc two-way analog output and one digital output interface, the output value corresponding to (X, Y) biaxial offset, the type is analog; the button indicates whether the user presses the Z axis, Its type is digital switch.
3. Through the controller programming, plug the sensor expansion board to complete the creative remote interactive works.
4. Cross rocker is a bi-directional 10K resistor, with the rocker in different directions, the tap resistance changes. The module uses 5V power supply, the original state of X, Y read-out voltage of 2.5V or so, with the direction of the arrow down, read the voltage value increases with up to 5V; the arrow is pressed in the opposite direction, read the voltage value decreases , The minimum is 0 V.

Product parameters:
Product Name: Rocker module (two-axis button rocker)
Product Size: 34.0mm x 26.0mm x 32.0mm/ 1.34 x 1.02 x 1.34 inch
Material: FR4+electronic component
Colour: Black

Connection for Arduino and Joystick module:
GND - GND
+5V - 5V
Analoog 0 - VRx
Analoog 1 - VRy
Analoog 2 - SW

Package Included
4 PCS Game Controller JoyStick Module
10P Female-Female cable
