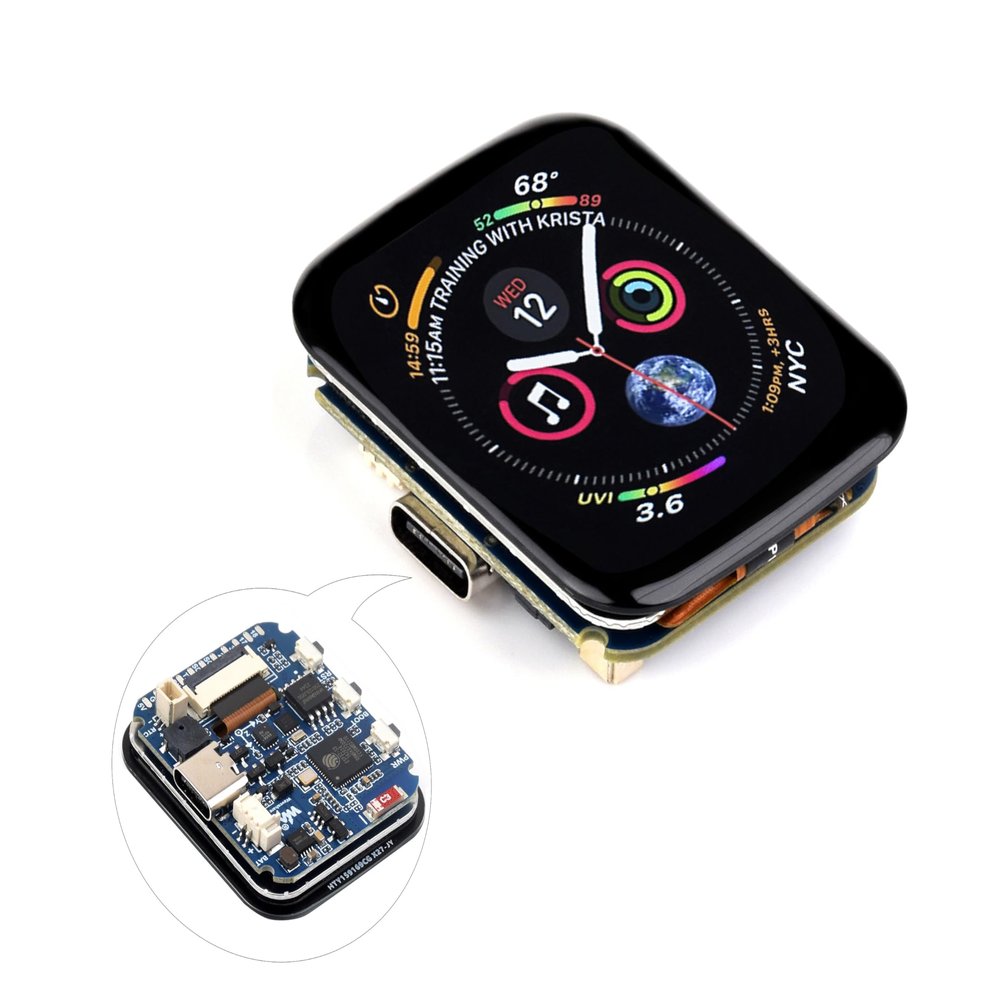

ESP32-S3 1.69inch Touch Display Development Board, 240280 Pixels, 262K Color, Micro LCD Display with ESP32-S3, Accelerometer and Gyroscope Sensor
SG$114.87
SG$191.45
-
Order within to get between -
Tracked Shipping on All Orders
-
14-Day Returns
- Secure Payments
-
24/7 Customer Support
Description
- ESP32-S3 onboard 1.69inch LCD display, Li-th-ium ba-tte-ry recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, and so on, which makes it easy for you to develop and integrate it into products quickly
- Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz W-i-F-i (802.11 b/g/n) and Blue-tooth 5 (LE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
- Onboard 1.69inch 240280 pixels 262K capacitive touch display for clear color pictures
- Built-in ST7789V2 display driver and CST816T capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
- Onboard PCF85063 R TC chip with reserved SH1.0 R TC batte-ry header (supports charging) for RTC function requirement. Onboard RST, BOOT and a programmable PWM button for easy custom function development
- Onboard 3.7V MX1.25 lith-iu-m ba-tte-ry recharge/discharge header. Reserved pads of 4 GPIO, I2C, and UART interface, for connecting peripherals and debugging
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
- Comes with Online Development Resources /User Manual: bit.ly/3QKw5Mv
