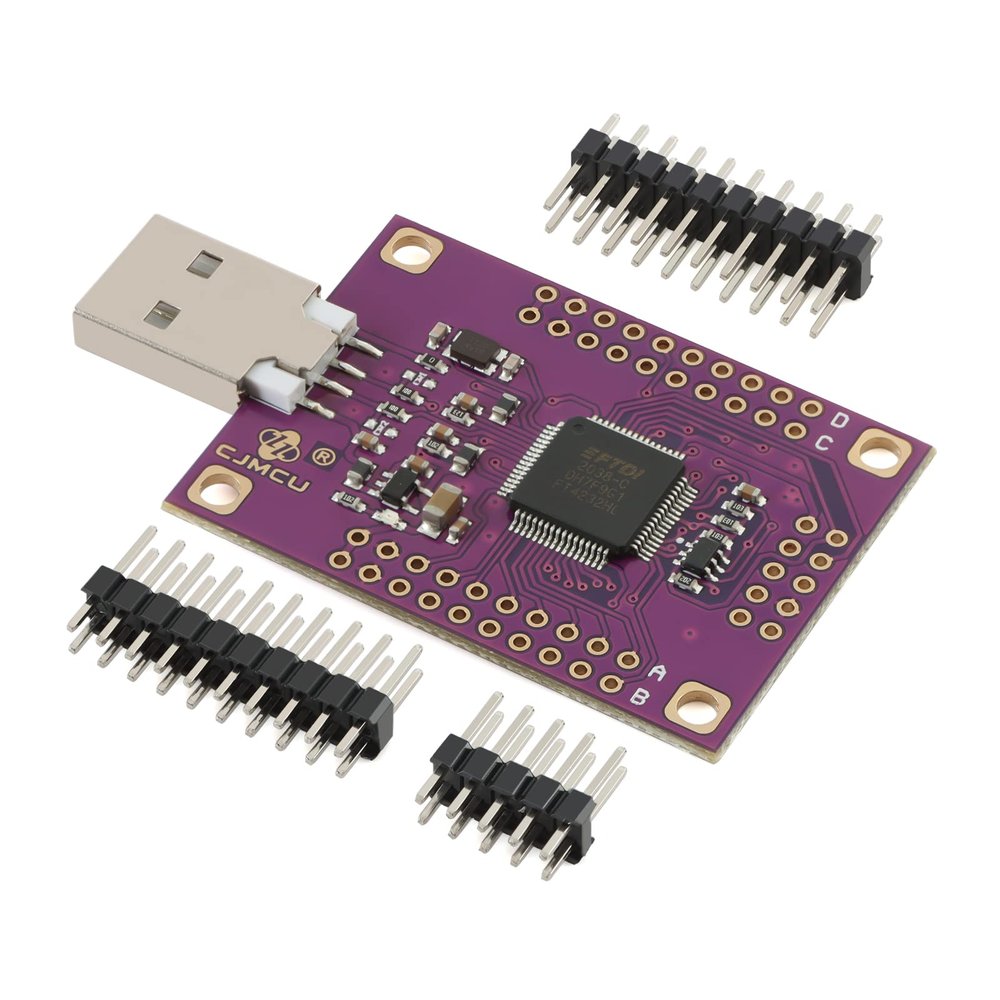

EC Buying FT4232HL 4 Channel USB to Serial Adapter FTDI FT4232 UART SPI I2C JTAG RS485 RS422 RS232 to USB High-Speed Multifunction Serial Adapter Module Support Multi Systems for Windows XP Windows 7

Description

• FT4232HL 4 Channel USB to Serial Adapter Module is a Full Speed (12Mbits/Second) and USB 2.0 High Speed (480Mb/s) to UART/MPSSE Module, this device features 4 UARTs, support UART SPI I2C JTAG RS485 RS422 RS232 to USB
• Entire USB protocol handled on the chip, No USB specific firmware programming required. USB to RS232/RS422/RS485 UART Transfer Data Rate up to 12Mbaud. (RS232 Data Rate limited by external level shifter).
• 2 Multi-Protocol Synchronous Serial Engine (MPSSE) on channel A and channel B, to simplify synchronous serial protocol (USB to JTAG, I2C, SPI or bit-bang) design.
• Low operating and USB suspend current, Configurable I/O drive strength (4,8,12 or 16mA) and slew rate, Supports bus powered, self powered and high power bus powered USB configurations.
• Suitable for USB Smart Card Readers, USB Instrumentation, USB Industrial Control, USB MP3 Player Interface, USB FLASH Card Reader / Writers, Set Top Box PC - USB interface, USB Digital Camera Interface, USB Bar Code Readers

The FT4232HL is a USB 2.0 High Speed (480Mb/s) to UART/MPSSE ICs. The device features 4 UARTs. Two of these have an option to independently configure an MPSSE engine. This allows the FT4232HL to operate as two UART/Bit-Bang ports plus two MPSSE engines used to emulate JTAG, SPI, I2C, Bit-bang or other synchronous serial modes.

The FT4232HL has the following advanced features:
Single chip USB to quad serial ports with a variety of configurations.
Independent Baud rate generators.
FTDIs royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
Optional traffic TX/RX indicators can be added with LEDs and an external 74HC595 shift register.
Adjustable receive buffer timeout.
Support for USB suspend and resume conditions via PWREN#, SUSPEND# and RI# pins.
Highly integrated design includes +1.8V LDO regulator for VCORE, integrated POR function and on chip clock multiplier PLL (12MHz480MHz).
FTDI FT232B style, asynchronous serial UART interface option with full hardware handshaking and modem interface signals.
Fully assisted hardware or X-On / X-Off software handshaking. UART Interface supports 7/8 bit data, 1/2 stop bits, and Odd/Even/Mark/Space/No Parity.
Auto-transmit enable control for RS485 serial applications using TXDEN pin. Operational configuration mode and USB description strings configurable in external EEPROM over the USB interface.
UHCI/OHCI/EHCI host controller compatible.
USB Bulk data transfer mode (512 byte packets in High Speed mode). Dedicated Windows DLLs available for USB to JTAG, USB to SPI, and USB to I2C applications.
+1.8V (chip core) and +3.3V I/O interfacing (+5V Tolerant).
Extended -40C to 85C industrial operating temperature range.
+3.3V single supply operating voltage range.
ESD protection for FT4232HL IOs:Human Body Model (HBM) 2kV, Machine Mode (MM) 200V,Charge Device Model (CDM) 500V.
