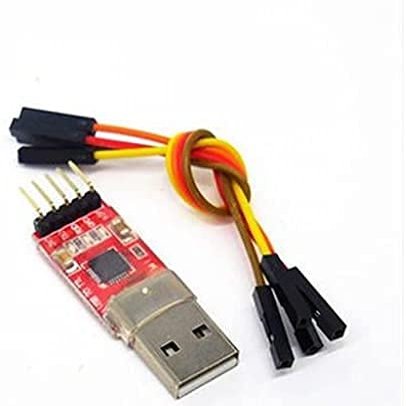

CP2102 Module USB to TTL USB to Serial Port Module UART STC Downloader

Description

• USB power supply, output interface includes 3.3V(<40mA), 5V, GND, TX, RX, signal pin level 3.3V, logic
• Support 300bps to 1Mbps baud rate
• USB head is male and can be directly connected to the USB port of your computer
• Surface Material: 0.125mm PET, the effective life of 20,000 times

Product Description:
1.The main chip is CP2102, which will generate a virtual serial port when you install the driver.
2. USB power supply, output interface include 3.3V(<40mA), 5V, GND, TX, RX, signal pin level 3.3V, logic
3. Onboard status indicator, transceiver indicator, after driver is installed correctly, the status indicator will always be on and the transceiver indicator will flash during communication. The higher the baud rate, the lower the brightness.
4. Support baud rate from 300bps to 1Mbps
5. Support communication format: 1) 5, 6, 7, 8 data bits. 2) Support 1, 1.5, and 2 stop bits. 3) Odd, even numbers, marks, spaces, no checksums
6. Operating system support: windows vista / xp / server 2003/200, Mac OS-X / OS-9, Linux
7. USB head is male and can be directly connected to the USB port of computer
8. SMD components are produced by SMT process of stable quality.
