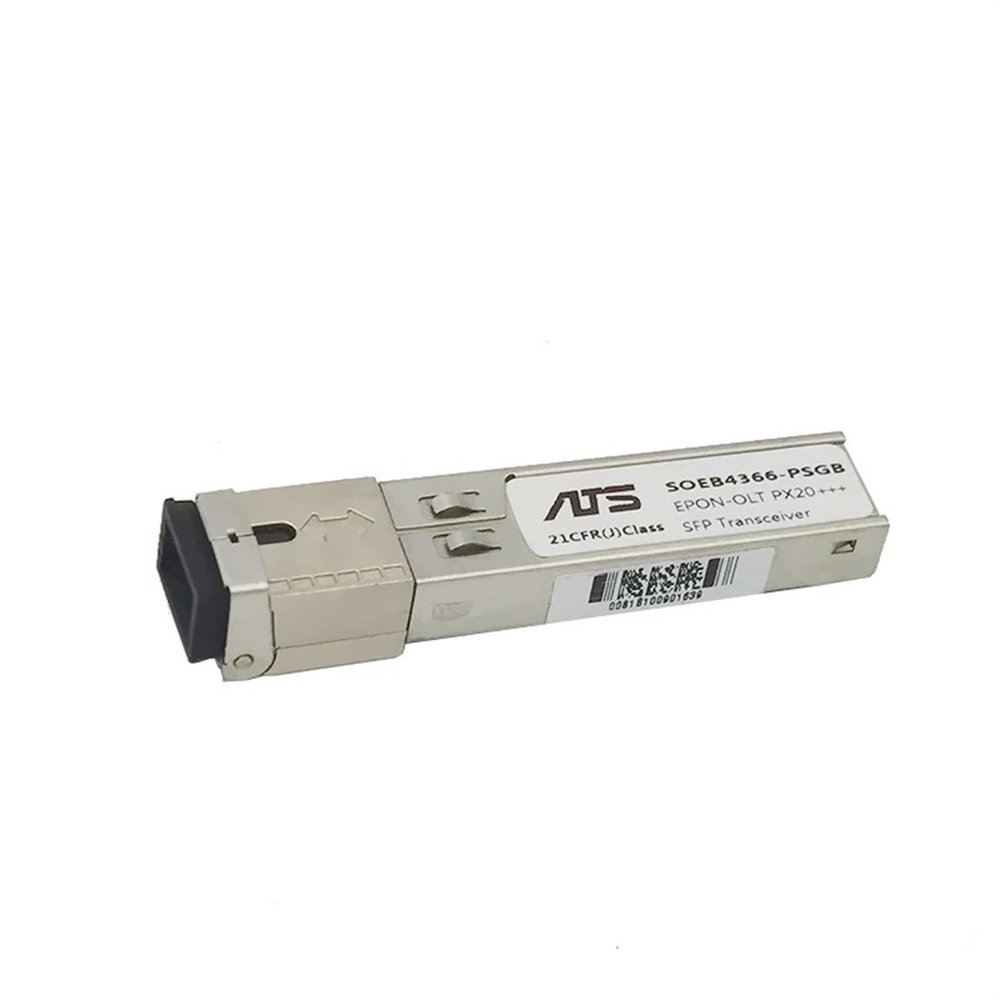

CIZVVEOC EPON OLT Optical transceiver PX20+ PX20++ px20+++ SFPOLT1.25G 1490/1310nm 3-7dBm SC OLT FTTH solutionmodule for (Color : ATS 7DB)

Description

• EPON OLT optical transceiver PX20+ PX20++ px20+++ SFPOLT1.25G 1490/1310nm 3-7dBm SC OLT FTTH solutionmodule for

EPON OLT PX 20+ PX20++ PX20+++ PX20++++ SFP optical transceiver for FTTH solution
Product Features:
1.25Gb/sserialopticalinterfacecompliantto
802.3AHspecificationssmallformfactor
pluggablemodule"SFP"
1490 nm DFB transmitter, 1310 nm APD photo
detector BURST receiver
2-wire interface for management specifications
compliant with SFF 8472 digital diagnostic monitoring
interface for optical transceiversOperating case temperature: 0 to 70 C or-40 to 85 C
All-metal housing for superior EMI performanceLow power consumption
Cost effective OLT solution,
compliant
Product Description
Absolute Maximum Ratings
Parameter
Unit
Min
Typical
Max
Power Supply Voltage
V 0 3.6
Storage Temperature
-40
85
Operating Case Temperature
-40
85
Operating Relative Humidity
% 5 95
RX Input Average Power
dBm
0 -7
RECOMMENDED OPERATING ENVIRONMENT
Parameters
Symbol
Min.
Typical
Max
Unit
Power Supply Voltage
VCC
3.135
3.3
3.465
V
Power Supply Current
Icc
350
mA
Operating Case
Temperature
TI
-40
25
85

ABSOLUTE MAXIMUM RATING
Parameters
Symbol
Min
Max
Unit
Power Supply Voltage
VCC
0 3.6
V
Storage Temperature
Tc
-40
85

Operating Case Temperature
TI
-40
85

Relative Humidity
RH
5 95
%
RX Input Average Power
Pmax
-7
dBm
