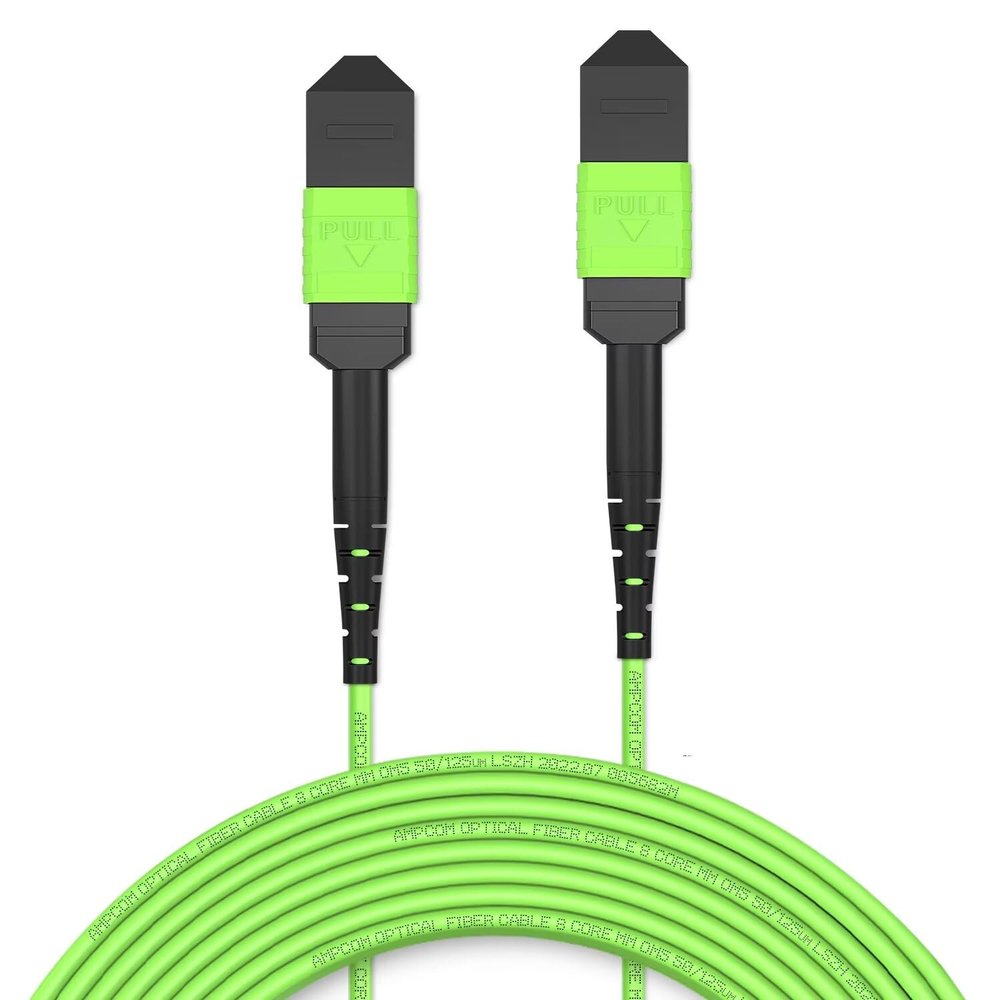

AMPCOM MPO to MPO Trunk Cable 50/125m Multimode OM5 (8 Fiber, MPO to MPO Female, Type B, LSZH/Riser, UPC, Lime Green) 5m (16ft)

Description

• High quality grade A fiber cable with 10mm Min. Bend Radius
• LSZH OFNR rated outer jacket, fire resistance and low smoke to minimize damage
• IEC-61754-7 and TIA-604-5 (FOCIS-5)
• Ideal for 1G/10G/40G/100G Indoor Connections
• High density cabling for various environments

AMPCOM 40GB 50/125 Multimode OM5 MPO Fiber Optic Trunk Cable ( 8,12,24 Fiber, MPO to MPO Female, Type B, LSZH, UPC, Lime Green)
Fiber Type: 50/125m
Insertion Loss: 0.3dB
Return Loss:30dB
Color: Lime Green
Wavelength: 850/1300nm
1G Ethernet Distance: 400m at 850nm
10G Ethernet Distance: 150m at 850nm
Glass Fiber: Corning ClearCurve Fiber
Aramid Yarn: DuPont Kevlar
Cable OD: 3MM
Jacket: LSZH
Bend Radius (Fiber core): 10mm Min.
Tensile Strength: 80N
Operating Temperature: -10 to +70C (14 to 158)
Storage Temperature: -40 to +85C (-40 to 185)
5G Data Center Build
Features
Factory-terminated provide consistent quality, high performance and reduce installation time
100% tested for low insertion loss performance and high back reflection
Fiber Count: 8 fiber trunk cable
Type B polarity use in 1G SFP SR4, 10G SFP+ SR4, 40G QSFP+ SR4, 40G QSFP+ SR4, 40G QSFP+ eSR4, and 100G QSFP28 SR4 transceiver optics
Optimized performance available in elite MTP and discrete premium connector upon request
Standards Compliance: RoHS, CE (EN 50575 CPR), ISO9001, WEEE Compliant EIA/TIA, Telecocordia GR-326-CORE Standards, IEC61754-7, TIA 605-4 (FOCIS 5), YD/T1272.5
LSZH Jacket by Default
