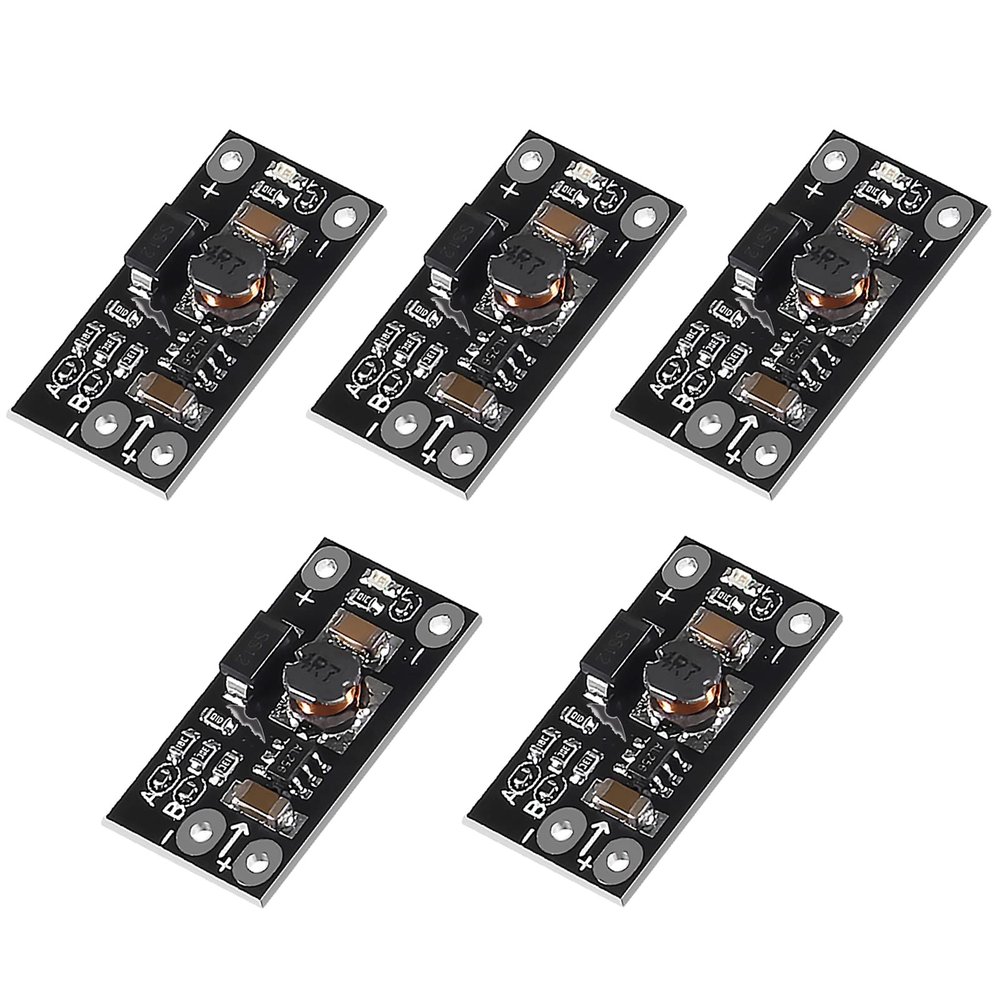

AITIAO 5PCS Multi-Function Mini Boost Module Step Up Board 5V/8V/9V/12V 1.5A LED Indicator DIY Electronic Voltage Module

Description

• Input voltage range: 2.5V~VOUT-0.5V
• The output voltage can be set to 5V/8V/9V/12V, the default is 12V
• Output performance: Take 3.7V lithium battery input as an example, it can output 5V1.2A, 8V0.7A, 9V0.6A, 12V0.5A.
• Make sure that the input current and output current do not exceed 1.5A.
• Package Content:5 x Mini 1.5A Multi-Function Boost Module(22 11 3.6mm).If you have any question, please contact us.

AITIAO Multi-function Mini Boost Module

Parameters: The output voltage can be set to 5V/8V/9V/12V, the default is 12V Input voltage range: 2.5V~VOUT-0.5V Output performance: Take 3.7V lithium battery input as an example, it can output 5V1.2A, 8V0.7A, 9V0.6A, 12V0.5A. Make sure that the input current and output current do not exceed 1.5A. Product size: 22 11 3.6mm
Voltage Setting Description:
The front side of the PCB can be seen with the words A and B. The output voltage can be changed by changing the pad on and off. In the following table, 0 means the pad is disconnected and 1 means the pad is connected.
A B VOUT
0 0 5V
0 1 8V
1 0 9V
1 1 12V
The pad next to the LED indicator can also be turned off to turn off the indicator.
Package Content: 5 x Mini 1.5A Multi-Function Boost Module
