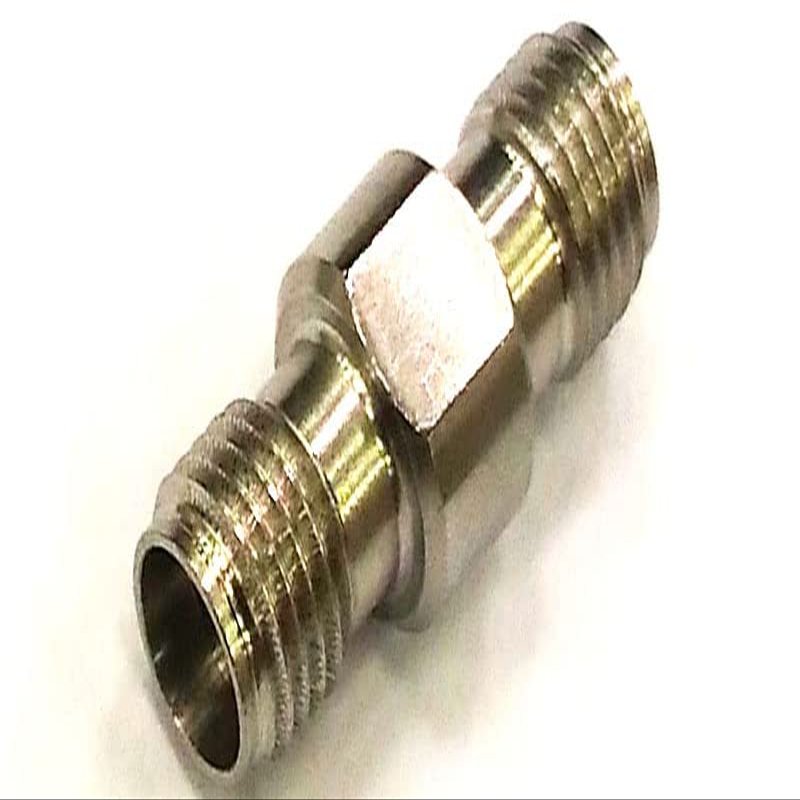

AEC ADT-3015S-KS25IP-KS25IP, 2.92mm Female to Female Adapter

Description

• Frequency Range : DC~40GHz
• Rugged stainless steel body
• Mate with SMA, 3.5mm connectors
• Low VSWR : 1.25 max.
• Package include:1 x termination

Material:
Shell: Stainless Steel
Contact Pin: Beryllium Copper Alloy
Insulator: PEI

Finished:
Shell: Passivated
Contact Pin: Gold plated

Electrical Characteristics:
Impedance: 50 ohm
Wideband coverage: DC to 40GHz
VSWR: 1.25 max.

Product Dimension:
Length: 19.0mm
Diameter: 8.0mm
Weight: 3.2g

Packing:
Zip Bag(1Pc/1Set)
